R138R78減速機詳細信息
R138R78減速機
訂購熱線：13360667204
R138R78減速機電機功率：R138R78Y0.12KW減速機,R138R78Y0.18KW減速機,R138R78Y0.25KW減速機,R138R78Y0.37KW減速機,R138R78Y0.55KW減速機,R138R78Y0.75KW減速機,R138R78Y1.1KW減速機,R138R78Y1.5KW減速機,R138R78Y2.2KW減速機,R138R78Y3KW減速機,R138R78Y4KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R137FRF77減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.12KW | 12921 | 0.12KW | 0.11r/min | 8050N.m | 261.5kg | 53300N | 1.00 |
| R137FRF77-Y0.12KW | 11712 | 0.12KW | 0.12r/min | 7250N.m | 261.5kg | 54900N | 1.10 |
| R137FRF77-Y0.12KW | 10573 | 0.12KW | 0.13r/min | 6390N.m | 261.5kg | 56400N | 1.25 |
| R137FRF77-Y0.12KW | 8784 | 0.12KW | 0.16r/min | 5020N.m | 261.5kg | 58400N | 1.60 |
| R137FRF77-Y0.12KW | 7479 | 0.12KW | 0.18r/min | 4090N.m | 261.5kg | 59400N | 1.95 |
| R137FRF77-Y0.12KW | 6559 | 0.12KW | 0.21r/min | 4060N.m | 261.5kg | 59400N | 1.95 |
| R137FRF77-Y0.12KW | 5834 | 0.12KW | 0.24r/min | 3190N.m | 261.5kg | 60200N | 2.50 |
| R137FRF77-Y0.12KW | 5116 | 0.12KW | 0.27r/min | 3160N.m | 261.5kg | 60200N | 2.50 |
R137FRF77減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.18KW | 4709 | 0.18KW | 0.28r/min | 5060N.m | 262kg | 58300N | 1.60 |
| R137FRF77-Y0.18KW | 4018 | 0.18KW | 0.33r/min | 4320N.m | 262kg | 59200N | 1.85 |
| R137FRF77-Y0.18KW | 3514 | 0.18KW | 0.38r/min | 3770N.m | 262kg | 59700N | 2.10 |
| R137FRF77-Y0.18KW | 3338 | 0.18KW | 0.40r/min | 3580N.m | 262kg | 59900N | 2.20 |
| R137FRF77-Y0.18KW | 2929 | 0.18KW | 0.45r/min | 3140N.m | 262kg | 60200N | 2.50 |
| R137FRF77-Y0.18KW | 8784 | 0.18KW | 0.15r/min | 8900N.m | 262kg | 50100N | 0.90 |
| R137FRF77-Y0.18KW | 7479 | 0.18KW | 0.18r/min | 7390N.m | 262kg | 54600N | 1.10 |
| R137FRF77-Y0.18KW | 6559 | 0.18KW | 0.20r/min | 6950N.m | 262kg | 55500N | 1.15 |
| R137FRF77-Y0.18KW | 5834 | 0.18KW | 0.23r/min | 5760N.m | 262kg | 57400N | 1.40 |
| R137FRF77-Y0.18KW | 5116 | 0.18KW | 0.26r/min | 5420N.m | 262kg | 57900N | 1.50 |
| R137FRF77-Y0.18KW | 4464 | 0.18KW | 0.30r/min | 4520N.m | 262kg | 59000N | 1.75 |
| R137FRF77-Y0.18KW | 3928 | 0.18KW | 0.34r/min | 3980N.m | 262kg | 59500N | 2.00 |
R137FRF77減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.25KW | 5834 | 0.25KW | 0.22r/min | 8660N.m | 266kg | 51100N | 0.90 |
| R137FRF77-Y0.25KW | 5116 | 0.25KW | 0.25r/min | 7960N.m | 266kg | 53500N | 1.00 |
| R137FRF77-Y0.25KW | 4464 | 0.25KW | 0.29r/min | 6740N.m | 266kg | 55800N | 1.20 |
| R137FRF77-Y0.25KW | 3928 | 0.25KW | 0.33r/min | 5930N.m | 266kg | 57100N | 1.35 |
| R137FRF77-Y0.25KW | 4709 | 0.25KW | 0.28r/min | 7430N.m | 266kg | 54600N | 1.10 |
| R137FRF77-Y0.25KW | 4018 | 0.25KW | 0.32r/min | 6340N.m | 266kg | 56500N | 1.25 |
| R137FRF77-Y0.25KW | 3514 | 0.25KW | 0.37r/min | 5540N.m | 266kg | 57700N | 1.45 |
| R137FRF77-Y0.25KW | 3338 | 0.25KW | 0.39r/min | 5260N.m | 266kg | 58100N | 1.50 |
| R137FRF77-Y0.25KW | 2929 | 0.25KW | 0.44r/min | 4620N.m | 266kg | 58900N | 1.75 |
| R137FRF77-Y0.25KW | 2658 | 0.25KW | 0.49r/min | 4180N.m | 266kg | 59300N | 1.90 |
| R137FRF77-Y0.25KW | 2412 | 0.25KW | 0.54r/min | 3800N.m | 266kg | 59700N | 2.10 |
| R137FRF77-Y0.25KW | 2073 | 0.25KW | 0.63r/min | 3260N.m | 266kg | 60100N | 2.40 |
| R137FRF77-Y0.25KW | 1839 | 0.25KW | 0.71r/min | 2810N.m | 266kg | 60500N | 2.80 |
| R137FRF77-Y0.25KW | 1397 | 0.25KW | 0.93r/min | 2180N.m | 266kg | 60800N | 3.70 |
| R137FRF77-Y0.25KW | 1226 | 0.25KW | 1.10r/min | 1880N.m | 266kg | 61000N | 4.20 |
R137FRF77減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.37KW | 4464 | 0.37KW | 0.31r/min | 9730N.m | 266.5kg | 36000N | 0.80 |
| R137FRF77-Y0.37KW | 3928 | 0.37KW | 0.35r/min | 8570N.m | 266.5kg | 51500N | 0.95 |
| R137FRF77-Y0.37KW | 4018 | 0.37KW | 0.34r/min | 9080N.m | 266.5kg | 48100N | 0.90 |
| R137FRF77-Y0.37KW | 3514 | 0.37KW | 0.39r/min | 7940N.m | 266.5kg | 53500N | 1.00 |
| R137FRF77-Y0.37KW | 3338 | 0.37KW | 0.41r/min | 7540N.m | 266.5kg | 54300N | 1.05 |
| R137FRF77-Y0.37KW | 2929 | 0.37KW | 0.47r/min | 6610N.m | 266.5kg | 56000N | 1.20 |
| R137FRF77-Y0.37KW | 2484 | 0.37KW | 0.56r/min | 5600N.m | 266.5kg | 57600N | 1.45 |
| R137FRF77-Y0.37KW | 2242 | 0.37KW | 0.62r/min | 5020N.m | 266.5kg | 58400N | 1.60 |
| R137FRF77-Y0.37KW | 2658 | 0.37KW | 0.52r/min | 5990N.m | 266.5kg | 57000N | 1.35 |
| R137FRF77-Y0.37KW | 2412 | 0.37KW | 0.57r/min | 5440N.m | 266.5kg | 57800N | 1.45 |
| R137FRF77-Y0.37KW | 2073 | 0.37KW | 0.67r/min | 4670N.m | 266.5kg | 58800N | 1.70 |
| R137FRF77-Y0.37KW | 1839 | 0.37KW | 0.75r/min | 4060N.m | 266.5kg | 59400N | 1.95 |
| R137FRF77-Y0.37KW | 1397 | 0.37KW | 0.99r/min | 3130N.m | 266.5kg | 60200N | 2.60 |
| R137FRF77-Y0.37KW | 1226 | 0.37KW | 1.10r/min | 2710N.m | 266.5kg | 60500N | 2.90 |
| R137FRF77-Y0.37KW | 1090 | 0.37KW | 1.30r/min | 2440N.m | 266.5kg | 60700N | 3.30 |
| R137FRF77-Y0.37KW | 951 | 0.37KW | 1.40r/min | 2130N.m | 266.5kg | 60900N | 3.80 |
R137FRF77減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.55KW | 2484 | 0.55KW | 0.56r/min | 8510N.m | 271kg | 51800N | 0.95 |
| R137FRF77-Y0.55KW | 2658 | 0.55KW | 0.52r/min | 9110N.m | 271kg | 47600N | 0.90 |
| R137FRF77-Y0.55KW | 2412 | 0.55KW | 0.57r/min | 8260N.m | 271kg | 52800N | 0.95 |
| R137FRF77-Y0.55KW | 2073 | 0.55KW | 0.67r/min | 7100N.m | 271kg | 55200N | 1.15 |
| R137FRF77-Y0.55KW | 1839 | 0.55KW | 0.75r/min | 6210N.m | 271kg | 56700N | 1.30 |
| R137FRF77-Y0.55KW | 1598 | 0.55KW | 0.86r/min | 5330N.m | 271kg | 58000N | 1.50 |
| R137FRF77-Y0.55KW | 1397 | 0.55KW | 0.99r/min | 4760N.m | 271kg | 58700N | 1.70 |
| R137FRF77-Y0.55KW | 1226 | 0.55KW | 1.10r/min | 4150N.m | 271kg | 59300N | 1.90 |
| R137FRF77-Y0.55KW | 1090 | 0.55KW | 1.30r/min | 3710N.m | 271kg | 59800N | 2.20 |
| R137FRF77-Y0.55KW | 951 | 0.55KW | 1.40r/min | 3240N.m | 271kg | 60200N | 2.50 |
| R137FRF77-Y0.55KW | 831 | 0.55KW | 1.70r/min | 2770N.m | 271kg | 60500N | 2.90 |
R137FRF77減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y0.75KW | 1863 | 0.75KW | 0.77r/min | 8370N.m | 272kg | 52400N | 0.95 |
| R137FRF77-Y0.75KW | 1586 | 0.75KW | 0.90r/min | 7090N.m | 272kg | 55200N | 1.15 |
| R137FRF77-Y0.75KW | 1391 | 0.75KW | 1.00r/min | 6320N.m | 272kg | 56500N | 1.25 |
| R137FRF77-Y0.75KW | 1256 | 0.75KW | 1.10r/min | 5680N.m | 272kg | 57500N | 1.40 |
| R137FRF77-Y0.75KW | 2073 | 0.75KW | 0.69r/min | 9410N.m | 272kg | 42400N | 0.85 |
| R137FRF77-Y0.75KW | 1839 | 0.75KW | 0.78r/min | 8260N.m | 272kg | 52800N | 0.95 |
| R137FRF77-Y0.75KW | 1598 | 0.75KW | 0.90r/min | 7110N.m | 272kg | 55200N | 1.10 |
| R137FRF77-Y0.75KW | 1397 | 0.75KW | 1.00r/min | 6320N.m | 272kg | 56500N | 1.25 |
| R137FRF77-Y0.75KW | 1226 | 0.75KW | 1.20r/min | 5520N.m | 272kg | 57700N | 1.45 |
| R137FRF77-Y0.75KW | 1090 | 0.75KW | 1.30r/min | 4930N.m | 272kg | 58500N | 1.60 |
| R137FRF77-Y0.75KW | 951 | 0.75KW | 1.50r/min | 4300N.m | 272kg | 59200N | 1.85 |
| R137FRF77-Y0.75KW | 831 | 0.75KW | 1.70r/min | 3700N.m | 272kg | 59800N | 2.20 |
| R137FRF77-Y0.75KW | 730 | 0.75KW | 2.00r/min | 3220N.m | 272kg | 60200N | 2.50 |
R137FRF77減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y1.1KW | 1391 | 1.1KW | 1.00r/min | 9470N.m | 276kg | 41400N | 0.85 |
| R137FRF77-Y1.1KW | 1391 | 1.1KW | 1.10r/min | 8530N.m | 276kg | 51700N | 0.95 |
| R137FRF77-Y1.1KW | 1105 | 1.1KW | 1.30r/min | 7480N.m | 276kg | 54500N | 1.05 |
| R137FRF77-Y1.1KW | 1043 | 1.1KW | 1.40r/min | 7050N.m | 276kg | 55300N | 1.15 |
| R137FRF77-Y1.1KW | 888 | 1.1KW | 1.60r/min | 5980N.m | 276kg | 57100N | 1.35 |
| R137FRF77-Y1.1KW | 1397 | 1.1KW | 1.00r/min | 9490N.m | 276kg | 41100N | 0.85 |
| R137FRF77-Y1.1KW | 1226 | 1.1KW | 1.20r/min | 8300N.m | 276kg | 52700N | 0.95 |
| R137FRF77-Y1.1KW | 1090 | 1.1KW | 1.30r/min | 7400N.m | 276kg | 54600N | 1.10 |
| R137FRF77-Y1.1KW | 951 | 1.1KW | 1.50r/min | 6460N.m | 276kg | 56300N | 1.25 |
| R137FRF77-Y1.1KW | 831 | 1.1KW | 1.70r/min | 5580N.m | 276kg | 57600N | 1.45 |
| R137FRF77-Y1.1KW | 730 | 1.1KW | 2.00r/min | 4870N.m | 276kg | 58600N | 1.65 |
| R137FRF77-Y1.1KW | 629 | 1.1KW | 2.30r/min | 4160N.m | 276kg | 59300N | 1.90 |
| R137FRF77-Y1.1KW | 490 | 1.1KW | 2.90r/min | 3250N.m | 276kg | 60200N | 2.50 |
| R137FRF77-Y1.1KW | 560 | 1.1KW | 2.50r/min | 3770N.m | 276kg | 59700N | 2.10 |
R137FRF77減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y1.5KW | 1043 | 1.5KW | 1.40r/min | 9620N.m | 279kg | 38400N | 0.85 |
| R137FRF77-Y1.5KW | 888 | 1.5KW | 1.60r/min | 8170N.m | 279kg | 53000N | 1.00 |
| R137FRF77-Y1.5KW | 699 | 1.5KW | 2.00r/min | 6400N.m | 279kg | 56400N | 1.25 |
| R137FRF77-Y1.5KW | 609 | 1.5KW | 2.40r/min | 5550N.m | 279kg | 57700N | 1.45 |
| R137FRF77-Y1.5KW | 1090 | 1.5KW | 1.30r/min | 10000N.m | 279kg | 27000N | 0.80 |
| R137FRF77-Y1.5KW | 951 | 1.5KW | 1.50r/min | 8800N.m | 279kg | 50500N | 0.90 |
| R137FRF77-Y1.5KW | 831 | 1.5KW | 1.70r/min | 7630N.m | 279kg | 54200N | 1.05 |
| R137FRF77-Y1.5KW | 730 | 1.5KW | 2.00r/min | 6670N.m | 279kg | 55900N | 1.20 |
| R137FRF77-Y1.5KW | 629 | 1.5KW | 2.30r/min | 5710N.m | 279kg | 57400N | 1.40 |
| R137FRF77-Y1.5KW | 490 | 1.5KW | 2.90r/min | 4460N.m | 279kg | 59000N | 1.80 |
| R137FRF77-Y1.5KW | 428 | 1.5KW | 3.30r/min | 3890N.m | 279kg | 59600N | 2.00 |
| R137FRF77-Y1.5KW | 560 | 1.5KW | 2.60r/min | 5150N.m | 279kg | 58200N | 1.55 |
| R137FRF77-Y1.5KW | 381 | 1.5KW | 3.80r/min | 3500N.m | 279kg | 59900N | 2.30 |
| R137FRF77-Y1.5KW | 323 | 1.5KW | 4.40r/min | 2970N.m | 279kg | 60400N | 2.70 |
R137FRF77減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y2.2KW | 699 | 2.2KW | 2.00r/min | 9510N.m | 288kg | 40600N | 0.85 |
| R137FRF77-Y2.2KW | 609 | 2.2KW | 2.30r/min | 8260N.m | 288kg | 52800N | 0.95 |
| R137FRF77-Y2.2KW | 730 | 2.2KW | 2.00r/min | 9920N.m | 288kg | 31700N | 0.80 |
| R137FRF77-Y2.2KW | 629 | 2.2KW | 2.30r/min | 8510N.m | 288kg | 51800N | 0.95 |
| R137FRF77-Y2.2KW | 490 | 2.2KW | 2.90r/min | 6640N.m | 288kg | 56000N | 1.20 |
| R137FRF77-Y2.2KW | 428 | 2.2KW | 3.30r/min | 5790N.m | 288kg | 57300N | 1.40 |
| R137FRF77-Y2.2KW | 560 | 2.2KW | 2.50r/min | 7640N.m | 288kg | 54100N | 1.05 |
| R137FRF77-Y2.2KW | 381 | 2.2KW | 3.70r/min | 5200N.m | 288kg | 58100N | 1.55 |
| R137FRF77-Y2.2KW | 323 | 2.2KW | 4.40r/min | 4410N.m | 288kg | 59100N | 1.80 |
| R137FRF77-Y2.2KW | 291 | 2.2KW | 4.90r/min | 3970N.m | 288kg | 59500N | 2.00 |
| R137FRF77-Y2.2KW | 255 | 2.2KW | 5.60r/min | 3470N.m | 288kg | 60000N | 2.30 |
| R137FRF77-Y2.2KW | 223 | 2.2KW | 6.40r/min | 3040N.m | 288kg | 60300N | 2.60 |
R137FRF77減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y3KW | 490 | 3KW | 3.00r/min | 8920N.m | 291kg | 50000N | 0.90 |
| R137FRF77-Y3KW | 428 | 3KW | 3.40r/min | 7790N.m | 291kg | 53800N | 1.05 |
| R137FRF77-Y3KW | 381 | 3KW | 3.80r/min | 6980N.m | 291kg | 55400N | 1.15 |
| R137FRF77-Y3KW | 323 | 3KW | 4.50r/min | 5920N.m | 291kg | 57200N | 1.35 |
| R137FRF77-Y3KW | 291 | 3KW | 5.00r/min | 5330N.m | 291kg | 58000N | 1.50 |
| R137FRF77-Y3KW | 255 | 3KW | 5.70r/min | 4650N.m | 291kg | 58800N | 1.70 |
| R137FRF77-Y3KW | 223 | 3KW | 6.05r/min | 4080N.m | 291kg | 59400N | 1.95 |
| R137FRF77-Y3KW | 517 | 3KW | 2.80r/min | 9600N.m | 291kg | 38800N | 0.85 |
| R137FRF77-Y3KW | 453 | 3KW | 3.20r/min | 8420N.m | 291kg | 52200N | 0.95 |
R137FRF77減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R137FRF77-Y4KW | 381 | 4KW | 3.80r/min | 9300N.m | 302kg | 44400N | 0.85 |
| R137FRF77-Y4KW | 323 | 4KW | 4.50r/min | 7890N.m | 302kg | 53600N | 1.00 |
| R137FRF77-Y4KW | 291 | 4KW | 5.00r/min | 7100N.m | 302kg | 55200N | 1.15 |
| R137FRF77-Y4KW | 255 | 4KW | 5.70r/min | 6210N.m | 302kg | 56700N | 1.30 |
| R137FRF77-Y4KW | 223 | 4KW | 6.50r/min | 5440N.m | 302kg | 57800N | 1.45 |
| R137FRF77-Y4KW | 376 | 4KW | 3.90r/min | 9290N.m | 302kg | 44600N | 0.85 |
| R137FRF77-Y4KW | 339 | 4KW | 4.30r/min | 8360N.m | 302kg | 52400N | 0.95 |
| R137FRF77-Y4KW | 297 | 4KW | 4.90r/min | 7320N.m | 302kg | 54800N | 1.10 |
R138R78減速器減速比：223比減速器,255比齒輪減速馬達,291比減速器,297比減速器,323比減速器,339比減速器,376比減速器,381比減速器,428比減速器,453比減速器,490比減速器,517比減速器,560比減速器,609比減速器,629比減速器,699比減速器,730比減速器,831比減速器,888比減速器,951比減速器,1043比減速器,1090比減速器,1105比減速器,1226比減速器,1256比減速器,1391比減速器,1397比減速器,1586比減速器,1598比減速器,1839比減速器,1863比減速器,2073比減速器,2242比減速器,2412比減速器,2484比減速器,2658比減速器,2929比減速器,3338比減速器,3514比減速器,3928比減速器,4018比減速器,4464比減速器,4709比減速器,5116比減速器,5834比減速器,6559比減速器,7479比減速器,8784比減速器,10573比減速器,11712比減速器,12921比減速器。

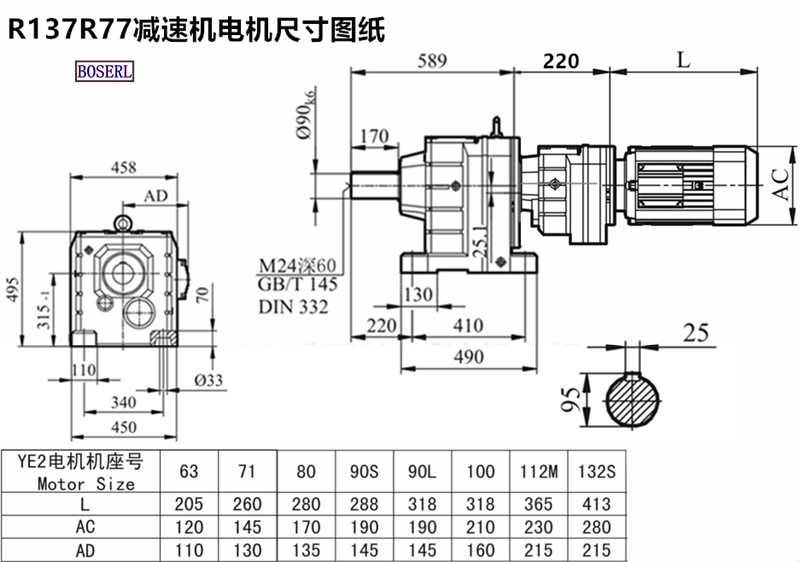

R138R78減速機電機安裝尺寸：輸出軸Φ90+鍵5（可定做），高495*寬450*長809（帶輸出軸）
R138R78減速電機輸出轉數：0.11轉減速電機,0.12轉減速電機,0.13轉減速電機,0.15轉減速電機,0.16轉減速電機,0.18轉減速電機,0.2轉減速電機,0.21轉減速電機,0.22轉減速電機,0.23轉減速電機,0.24轉減速電機,0.25轉減速電機,0.26轉減速電機,0.27轉減速電機,0.28轉減速電機,0.29轉減速電機,0.3轉臥式減速機,0.31轉減速電機,0.32轉減速電機,0.33轉減速電機,0.34轉減速電機,0.35轉減速電機,0.37轉減速電機,0.38轉減速電機,0.39轉減速電機,0.4轉減速電機,0.41轉減速電機,0.44轉減速電機,0.45轉減速電機,0.47轉減速電機,0.49轉減速電機,0.52轉減速電機,0.54轉減速電機,0.56轉減速電機,0.57轉減速電機,0.62轉減速電機,0.63轉減速電機,0.67轉減速電機,0.69轉減速電機,0.71轉減速電機,0.75轉減速電機,0.77轉減速電機,0.78轉減速電機,0.86轉減速電機,0.9轉減速電機,0.93轉減速電機,0.99轉減速電機,1轉減速電機,1.1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.4轉減速電機,1.5轉減速電機,1.6轉減速電機,1.7轉減速電機,2轉減速電機,2.3轉減速電機,2.4轉減速電機,2.5轉減速電機,2.6轉減速電機,2.8轉減速電機,2.9轉減速電機,3轉減速電機,3.2轉減速電機,3.3轉減速電機,3.4轉減速電機,3.7轉減速電機,3.8轉減速電機,3.9轉減速電機,4.3轉減速電機,4.4轉減速電機,4.5轉減速電機,4.9轉減速電機,5轉減速電機,5.6轉減速電機,5.7轉減速電機,6.4轉減速電機,6.5轉減速電機。
R138R78減速箱電機輸出扭矩：1880N.m減速箱,2130N.m減速箱,2180N.m減速箱,2440N.m減速箱,2710N.m減速箱,2770N.m減速箱,2810N.m減速箱,2970N.m減速箱,3040N.m減速箱,3130N.m減速箱,3140N.m減速箱,3160N.m減速箱,3190N.m減速箱,3220N.m減速箱,3240N.m減速箱,3250N.m減速箱,3260N.m減速箱,3470N.m減速箱,3500N.m減速箱,3580N.m減速箱,3700N.m減速箱,3710N.m減速箱,3770N.m減速箱,3800N.m減速箱,3890N.m減速箱,3970N.m減速箱,3980N.m減速箱,4060N.m減速箱,4080N.m減速箱,4090N.m減速箱,4150N.m減速箱,4160N.m減速箱,4180N.m減速箱,4300N.m減速箱,4320N.m減速箱,4410N.m減速箱,4460N.m減速箱,4520N.m減速箱,4620N.m減速箱,4650N.m減速箱,4670N.m減速箱,4760N.m減速箱,4870N.m減速箱,4930N.m減速箱,5020N.m減速箱,5060N.m減速箱,5150N.m減速箱,5200N.m減速箱,5260N.m減速箱,5330N.m減速箱,5420N.m減速箱,5440N.m減速箱,5520N.m減速箱,5540N.m減速箱,5550N.m減速箱,5580N.m減速箱,5600N.m減速箱,5680N.m減速箱,5710N.m減速箱,5760N.m減速箱,5790N.m減速箱,5920N.m減速箱,5930N.m減速箱,5980N.m減速箱,5990N.m減速箱,6210N.m減速箱,6320N.m減速箱,6340N.m減速箱,6390N.m減速箱,6400N.m減速箱,6460N.m減速箱,6610N.m減速箱,6640N.m減速箱,6670N.m減速箱,6740N.m減速箱,6950N.m減速箱,6980N.m減速箱,7050N.m減速箱,7090N.m減速箱,7100N.m減速箱,7110N.m減速箱,7250N.m減速箱,7320N.m減速箱,7390N.m減速箱,7400N.m減速箱,7430N.m減速箱,7480N.m減速箱,7540N.m減速箱,7630N.m減速箱,7640N.m減速箱,7790N.m減速箱,7890N.m減速箱,7940N.m減速箱,7960N.m減速箱,8050N.m減速箱,8170N.m減速箱,8260N.m減速箱,8300N.m減速箱,8360N.m減速箱,8370N.m減速箱,8420N.m減速箱,8510N.m減速箱,8530N.m減速箱,8570N.m減速箱,8660N.m減速箱,8800N.m減速箱,8900N.m減速箱,8920N.m減速箱,9080N.m減速箱,9110N.m減速箱,9290N.m減速箱,9300N.m減速箱,9410N.m減速箱,9470N.m減速箱,9490N.m減速箱,9510N.m減速箱,9600N.m減速箱,9620N.m減速箱,9730N.m減速箱,9920N.m減速箱,10000N.m減速箱。

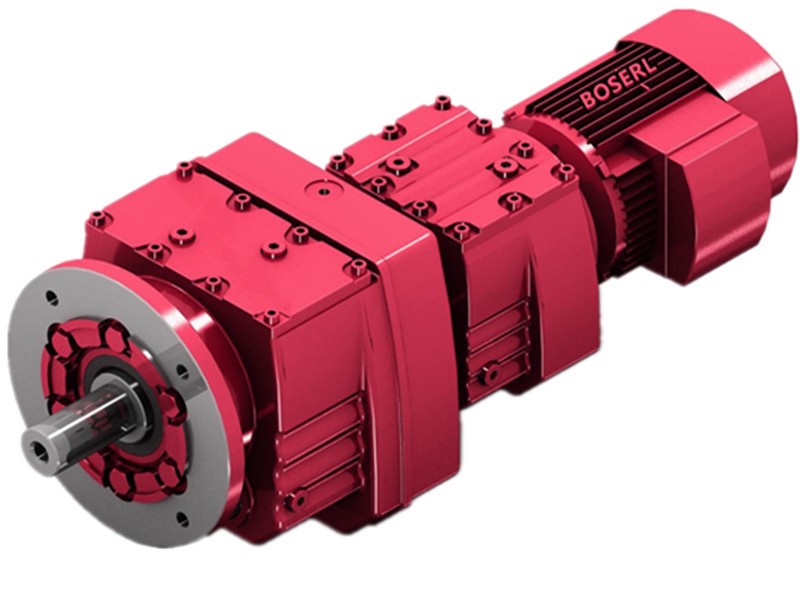

R138R78減速機電機各種輸出實物圖：
R138R78減速馬達型號：
R137FR77DM100L4,R137FR77DM100LC4,R137FR77DM100LS4,R137FR77DM100M4,R137FR77DM112M4,R137FR77DM63L4,R137FR77DM63M4,R137FR77DM63MS4,R137FR77DM63S4,R137FR77DM71D4,R137FR77DM71M4,R137FR77DM71MS4,R137FR77DM71S4,R137FR77DM80K4,R137FR77DM80M4,R137FR77DM80MK4,R137FR77DM80N4,R137FR77DM80S4,R137FR77DM90L4,R137FR77DM90M4,R137FR77DM90S4,R137FR77DR100L4,R137FR77DR100LC4,R137FR77DR100LS4,R137FR77DR100M4,R137FR77DR112M4,R137FR77DR63L4,R137FR77DR63M4,R137FR77DR63MS4,R137FR77DR63S4,R137FR77DR71D4,R137FR77DR71M4,R137FR77DR71MS4,R137FR77DR71S4,R137FR77DR80K4,R137FR77DR80M4,R137FR77DR80MK4,R137FR77DR80N4,R137FR77DR80S4,R137FR77DR90L4,R137FR77DR90M4,R137FR77DR90S4,R137FR77DRE100L4,R137FR77DRE100LC4,R137FR77DRE100LS4,R137FR77DRE100M4,R137FR77DRE112M4,R137FR77DRE63L4,R137FR77DRE63M4,R137FR77DRE63MS4,R137FR77DRE63S4,R137FR77DRE71D4,R137FR77DRE71M4,R137FR77DRE71MS4,R137FR77DRE71S4,R137FR77DRE80K4,R137FR77DRE80M4,R137FR77DRE80MK4,R137FR77DRE80N4,R137FR77DRE80S4,R137FR77DRE90L4,R137FR77DRE90M4,R137FR77DRE90S4,R137FR77DRN100L4,R137FR77DRN100LC4,R137FR77DRN100LS4,R137FR77DRN100M4,R137FR77DRN112M4,R137FR77DRN63L4,R137FR77DRN63M4,R137FR77DRN63MS4,R137FR77DRN63S4,R137FR77DRN71D4,R137FR77DRN71M4,R137FR77DRN71MS4,R137FR77DRN71S4,R137FR77DRN80K4,R137FR77DRN80M4,R137FR77DRN80MK4,R137FR77DRN80N4,R137FR77DRN80S4,R137FR77DRN90L4,R137FR77DRN90M4,R137FR77DRN90S4,R137FR77DRS100L4,R137FR77DRS100LC4,R137FR77DRS100LS4,R137FR77DRS100M4,R137FR77DRS112M4,R137FR77DRS63L4,R137FR77DRS63M4,R137FR77DRS63MS4,R137FR77DRS63S4,R137FR77DRS71D4,R137FR77DRS71M4,R137FR77DRS71MS4,R137FR77DRS71S4,R137FR77DRS80K4,R137FR77DRS80M4,R137FR77DRS80MK4,R137FR77DRS80N4,R137FR77DRS80S4,R137FR77DRS90L4,R137FR77DRS90M4,R137FR77DRS90S4,R137FR77DT100L4,R137FR77DT100LC4,R137FR77DT100LS4,R137FR77DT100M4,R137FR77DT112M4,R137FR77DT63L4,R137FR77DT63M4,R137FR77DT63MS4,R137FR77DT63S4,R137FR77DT71D4,R137FR77DT71M4,R137FR77DT71MS4,R137FR77DT71S4,R137FR77DT80K4,R137FR77DT80M4,R137FR77DT80MK4,R137FR77DT80N4,R137FR77DT80S4,R137FR77DT90L4,R137FR77DT90M4,R137FR77DT90S4,R137FR77DV100L4,R137FR77DV100LC4,R137FR77DV100LS4,R137FR77DV100M4,R137FR77DV112M4,R137FR77DV63L4,R137FR77DV63M4,R137FR77DV63MS4,R137FR77DV63S4,R137FR77DV71D4,R137FR77DV71M4,R137FR77DV71MS4,R137FR77DV71S4,R137FR77DV80K4,R137FR77DV80M4,R137FR77DV80MK4,R137FR77DV80N4,R137FR77DV80S4,R137FR77DV90L4,R137FR77DV90M4,R137FR77DV90S4,R137FR77DVE100L4,R137FR77DVE100LC4,R137FR77DVE100LS4,R137FR77DVE100M4,R137FR77DVE112M4,R137FR77DVE63L4,R137FR77DVE63M4,R137FR77DVE63MS4,R137FR77DVE63S4,R137FR77DVE71D4,R137FR77DVE71M4,R137FR77DVE71MS4,R137FR77DVE71S4,R137FR77DVE80K4,R137FR77DVE80M4,R137FR77DVE80MK4,R137FR77DVE80N4,R137FR77DVE80S4,R137FR77DVE90L4,R137FR77DVE90M4,R137FR77DVE90S4,R137FRF77-Y0.12KW,R137FRF77-Y0.18KW,R137FRF77-Y0.25KW,R137FRF77-Y0.37KW,R137FRF77-Y0.37KW,R137FRF77-Y0.55KW,R137FRF77-Y0.75KW,R137FRF77-Y1.1KW,R137FRF77-Y1.5KW,R137FRF77-Y2.2KW,R137FRF77-Y3KW,R137FRF77-Y4KW,R137FRF77-YEJ0.12KW,R137FRF77-YEJ0.18KW,R137FRF77-YEJ0.25KW,R137FRF77-YEJ0.37KW,R137FRF77-YEJ0.55KW,R137FRF77-YEJ0.75KW,R137FRF77-YEJ1.1KW,R137FRF77-YEJ1.5KW,R137FRF77-YEJ2.2KW,R137FRF77-YEJ3KW,R137FRF77-YEJ4KW,R137FRF77-YVP0.12KW,R137FRF77-YVP0.18KW,R137FRF77-YVP0.25KW,R137FRF77-YVP0.55KW,R137FRF77-YVP0.75KW,R137FRF77-YVP1.1KW,R137FRF77-YVP1.5KW,R137FRF77-YVP2.2KW,R137FRF77-YVP3KW,R137FRF77-YVP4KW,R137FRF77-YVPEJ0.12KW,R137FRF77-YVPEJ0.18KW,R137FRF77-YVPEJ0.25KW,R137FRF77-YVPEJ0.37KW,R137FRF77-YVPEJ0.55KW,R137FRF77-YVPEJ0.75KW,R137FRF77-YVPEJ1.1KW,R137FRF77-YVPEJ1.5KW,R137FRF77-YVPEJ2.2KW,R137FRF77-YVPEJ3KW,R137FRF77-YVPEJ4KW。
R138R78減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.titostamales.com/product/list-rxiliejiansuji-cn.html
推薦型號：R138減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R137FRF77-Y0.12KW R137FRF77-Y0.18KW R137FRF77-Y0.25KW R137FRF77-Y0.37KW R137FRF77-Y0.55KW R137FRF77-Y0.75KW R137FRF77-Y1.1KW R137FRF77-Y1.5KW R137FRF77-Y2.2KW R137FRF77-Y3KW R137FRF77-Y4KW
- 上一條R148R88減速機
- 下一條R168R98減速機
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| R138R78減速機三維圖紙下載3D |
|
| R+RF組合減速機樣本 |
|
