R68減速機詳細信息
R68減速機
訂購熱線：13360667204
R68減速機傳動比計算：齒輪減速馬達
輸送帶參數：輪子直徑150，負載3噸，一分鐘走25米
25米÷（0.15輪子直徑×3.14）=53轉每分鐘
3噸換算成N=30000N
30000×0.075輪子半徑×0.06摩擦系數=135N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍135×2=270N.m
電機轉數1400÷輸出轉數53=26.41比
270N.m輸出扭矩÷26.41比=10.22N.m電機扭矩
10.22N.m電機扭矩換算成功率1.63KW以上
對應的R68減速機選型參數：
型號：R68-B1.5KW
減速比：28.13
輸出轉數：51轉每分鐘
輸出扭矩：280N.m
安全系數：1.90

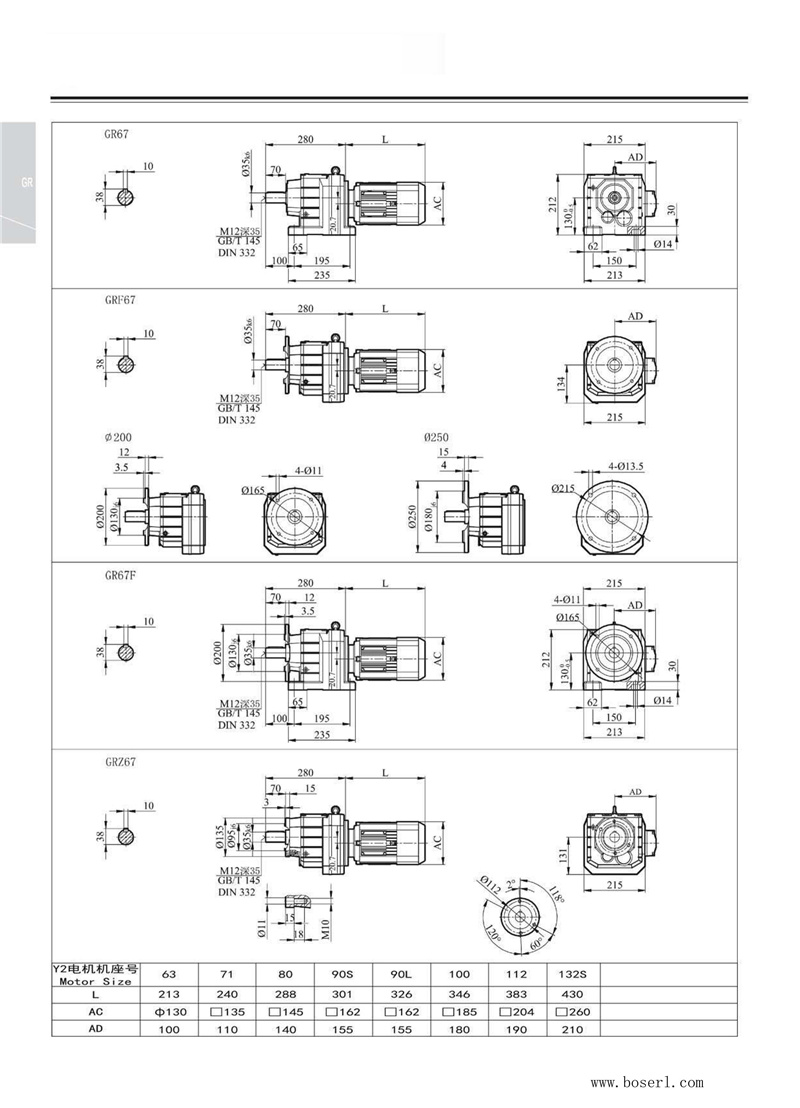

R68減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R68臥式硬齒面斜齒輪減速機型號：
R67FDM100L4,R67FDM100LC4,R67FDM100LS4,R67FDM100M4,R67FDM112M4,R67FDM132L4,R67FDM132M4,R67FDM132MC4,R67FDM132ML4,R67FDM132S4,R67FDM63L4,R67FDM63M4,R67FDM63MS4,R67FDM63S4,R67FDM71D4,R67FDM71M4,R67FDM71MS4,R67FDM71S4,R67FDM80K4,R67FDM80M4,R67FDM80MK4,R67FDM80N4,R67FDM80S4,R67FDM90L4,R67FDM90M4,R67FDM90S4,R67FDR100L4,R67FDR100LC4,R67FDR100LS4,R67FDR100M4,R67FDR112M4,R67FDR132L4,R67FDR132M4,R67FDR132MC4,R67FDR132ML4,R67FDR132S4,R67FDR63L4,R67FDR63M4,R67FDR63MS4,R67FDR63S4,R67FDR71D4,R67FDR71M4,R67FDR71MS4,R67FDR71S4,R67FDR80K4,R67FDR80M4,R67FDR80MK4,R67FDR80N4,R67FDR80S4,R67FDR90L4,R67FDR90M4,R67FDR90S4,R67FDRE100L4,R67FDRE100LC4,R67FDRE100LS4,R67FDRE100M4,R67FDRE112M4,R67FDRE132L4,R67FDRE132M4,R67FDRE132MC4,R67FDRE132ML4,R67FDRE132S4,R67FDRE63L4,R67FDRE63M4,R67FDRE63MS4,R67FDRE63S4,R67FDRE71D4,R67FDRE71M4,R67FDRE71MS4,R67FDRE71S4,R67FDRE80K4,R67FDRE80M4,R67FDRE80MK4,R67FDRE80N4,R67FDRE80S4,R67FDRE90L4,R67FDRE90M4,R67FDRE90S4,R67FDRN100L4,R67FDRN100LC4,R67FDRN100LS4,R67FDRN100M4,R67FDRN112M4,R67FDRN132L4,R67FDRN132M4,R67FDRN132MC4,R67FDRN132ML4,R67FDRN132S4,R67FDRN63L4,R67FDRN63M4,R67FDRN63MS4,R67FDRN63S4,R67FDRN71D4,R67FDRN71M4,R67FDRN71MS4,R67FDRN71S4,R67FDRN80K4,R67FDRN80M4,R67FDRN80MK4,R67FDRN80N4,R67FDRN80S4,R67FDRN90L4,R67FDRN90M4,R67FDRN90S4,R67FDRS100L4,R67FDRS100LC4,R67FDRS100LS4,R67FDRS100M4,R67FDRS112M4,R67FDRS132L4,R67FDRS132M4,R67FDRS132MC4,R67FDRS132ML4,R67FDRS132S4,R67FDRS63L4,R67FDRS63M4,R67FDRS63MS4,R67FDRS63S4,R67FDRS71D4,R67FDRS71M4,R67FDRS71MS4,R67FDRS71S4,R67FDRS80K4,R67FDRS80M4,R67FDRS80MK4,R67FDRS80N4,R67FDRS80S4,R67FDRS90L4,R67FDRS90M4,R67FDRS90S4,R67FDT100L4,R67FDT100LC4,R67FDT100LS4,R67FDT100M4,R67FDT112M4,R67FDT132L4,R67FDT132M4,R67FDT132MC4,R67FDT132ML4,R67FDT132S4,R67FDT63L4,R67FDT63M4,R67FDT63MS4,R67FDT63S4,R67FDT71D4,R67FDT71M4,R67FDT71MS4,R67FDT71S4,R67FDT80K4,R67FDT80M4,R67FDT80MK4,R67FDT80N4,R67FDT80S4,R67FDT90L4,R67FDT90M4,R67FDT90S4,R67FDV100L4,R67FDV100LC4,R67FDV100LS4,R67FDV100M4,R67FDV112M4,R67FDV132L4,R67FDV132M4,R67FDV132MC4,R67FDV132ML4,R67FDV132S4,R67FDV63L4,R67FDV63M4,R67FDV63MS4,R67FDV63S4,R67FDV71D4,R67FDV71M4,R67FDV71MS4,R67FDV71S4,R67FDV80K4,R67FDV80M4,R67FDV80MK4,R67FDV80N4,R67FDV80S4,R67FDV90L4,R67FDV90M4,R67FDV90S4,R67FDVE100L4,R67FDVE100LC4,R67FDVE100LS4,R67FDVE100M4,R67FDVE112M4,R67FDVE132L4,R67FDVE132M4,R67FDVE132MC4,R67FDVE132ML4,R67FDVE132S4,R67FDVE63L4,R67FDVE63M4,R67FDVE63MS4,R67FDVE63S4,R67FDVE71D4,R67FDVE71M4,R67FDVE71MS4,R67FDVE71S4,R67FDVE80K4,R67FDVE80M4,R67FDVE80MK4,R67FDVE80N4,R67FDVE80S4,R67FDVE90L4,R67FDVE90M4,R67FDVE90S4,R67F-Y0.12KW,R67F-Y0.18KW,R67F-Y0.25KW,R67F-Y0.37KW,R67F-Y0.55KW,R67F-Y0.75KW,R67F-Y1.1KW,R67F-Y1.5KW,R67F-Y100M4,R67F-Y112M4,R67F-Y132M4,R67F-Y2.2KW,R67F-Y3KW,R67F-Y4KW,R67F-Y5.5KW,R67F-Y63M4,R67F-Y7.5KW,R67F-Y71M4,R67F-Y80M4,R67F-Y90M4,R67F-YEJ0.12KW,R67F-YEJ0.18KW,R67F-YEJ0.25KW,R67F-YEJ0.37KW,R67F-YEJ0.55KW,R67F-YEJ0.75KW,R67F-YEJ1.1KW,R67F-YEJ1.5KW,R67F-YEJ100M4,R67F-YEJ112M4,R67F-YEJ132M4,R67F-YEJ2.2KW,R67F-YEJ3KW,R67F-YEJ4KW,R67F-YEJ5.5KW,R67F-YEJ63M4,R67F-YEJ7.5KW,R67F-YEJ71M4,R67F-YEJ80M4,R67F-YEJ90M4,R67F-YVP0.12KW,R67F-YVP0.18KW,R67F-YVP0.25KW,R67F-YVP0.37KW,R67F-YVP0.55KW,R67F-YVP0.75KW,R67F-YVP1.1KW,R67F-YVP1.5KW,R67F-YVP100M4,R67F-YVP112M4,R67F-YVP132M4,R67F-YVP2.2KW,R67F-YVP3KW,R67F-YVP4KW,R67F-YVP5.5KW,R67F-YVP63M4,R67F-YVP7.5KW,R67F-YVP71M4,R67F-YVP80M4,R67F-YVP90M4,R67F-YVPEJ0.12KW,R67F-YVPEJ0.18KW,R67F-YVPEJ0.25KW,R67F-YVPEJ0.37KW,R67F-YVPEJ0.55KW,R67F-YVPEJ0.75KW,R67F-YVPEJ1.1KW,R67F-YVPEJ1.5KW,R67F-YVPEJ100M4,R67F-YVPEJ112M4,R67F-YVPEJ132M4,R67F-YVPEJ2.2KW,R67F-YVPEJ3KW,R67F-YVPEJ4KW,R67F-YVPEJ5.5KW,R67F-YVPEJ63M4,R67F-YVPEJ7.5KW,R67F-YVPEJ71M4,R67F-YVPEJ80M4,R67F-YVPEJ90M4。
R67系列減速機參數大全：同軸斜齒輪減速電機
R67F減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.12KW | 199.81 | 0.12KW | 30.5kg | 10300N |
| R67F-Y0.12KW | 184.07 | 0.12KW | 30.5kg | 10400N |
R67F減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.18KW | 199.81 | 0.18KW | 31kg | 10100N |
| R67F-Y0.18KW | 184.07 | 0.18KW | 31kg | 10100N |
| R67F-Y0.18KW | 158.14 | 0.18KW | 31kg | 10200N |
| R67F-Y0.18KW | 137.67 | 0.18KW | 31kg | 10300N |
| R67F-Y0.18KW | 128.97 | 0.18KW | 31kg | 10300N |
| R67F-Y0.18KW | 113.94 | 0.18KW | 31kg | 10400N |
| R67F-Y0.18KW | 105.83 | 0.18KW | 31kg | 10400N |
R67F減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.25KW | 199.81 | 0.25KW | 35kg | 9540N |
| R67F-Y0.25KW | 184.07 | 0.25KW | 35kg | 9700N |
| R67F-Y0.25KW | 158.14 | 0.25KW | 35kg | 9930N |
| R67F-Y0.25KW | 137.67 | 0.25KW | 35kg | 10100N |
| R67F-Y0.25KW | 128.97 | 0.25KW | 35kg | 10100N |
| R67F-Y0.25KW | 113.94 | 0.25KW | 35kg | 10200N |
| R67F-Y0.25KW | 105.83 | 0.25KW | 35kg | 10300N |
| R67F-Y0.25KW | 95.91 | 0.25KW | 35kg | 10300N |
| R67F-Y0.25KW | 86.11 | 0.25KW | 35kg | 10400N |
R67F減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.37KW | 199.81 | 0.37KW | 35.5kg | 8480N |
| R67F-Y0.37KW | 184.07 | 0.37KW | 35.5kg | 8820N |
| R67F-Y0.37KW | 158.14 | 0.37KW | 35.5kg | 9300N |
| R67F-Y0.37KW | 137.67 | 0.37KW | 35.5kg | 9620N |
| R67F-Y0.37KW | 128.97 | 0.37KW | 35.5kg | 9740N |
| R67F-Y0.37KW | 113.94 | 0.37KW | 35.5kg | 9920N |
| R67F-Y0.37KW | 105.83 | 0.37KW | 35.5kg | 10000N |
| R67F-Y0.37KW | 95.91 | 0.37KW | 35.5kg | 10100N |
| R67F-Y0.37KW | 86.11 | 0.37KW | 35.5kg | 10200N |
| R67F-Y0.37KW | 74.17 | 0.37KW | 35.5kg | 10300N |
| R67F-Y0.37KW | 69.75 | 0.37KW | 35.5kg | 10300N |
| R67F-Y0.37KW | 61.26 | 0.37KW | 35.5kg | 10400N |
| R67F-Y0.37KW | 56.89 | 0.37KW | 35.5kg | 10400N |
R67F減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.55KW | 158.14 | 0.55KW | 40kg | 7540N |
| R67F-Y0.55KW | 137.67 | 0.55KW | 40kg | 8360N |
| R67F-Y0.55KW | 128.97 | 0.55KW | 40kg | 8660N |
| R67F-Y0.55KW | 113.94 | 0.55KW | 40kg | 9110N |
| R67F-Y0.55KW | 105.83 | 0.55KW | 40kg | 9320N |
| R67F-Y0.55KW | 95.91 | 0.55KW | 40kg | 9550N |
| R67F-Y0.55KW | 86.11 | 0.55KW | 40kg | 9750N |
| R67F-Y0.55KW | 74.17 | 0.55KW | 40kg | 9960N |
| R67F-Y0.55KW | 69.75 | 0.55KW | 40kg | 10000N |
| R67F-Y0.55KW | 61.26 | 0.55KW | 40kg | 10200N |
| R67F-Y0.55KW | 56.89 | 0.55KW | 40kg | 10200N |
R67F減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y0.75KW | 128.97 | 0.75KW | 41kg | 7000N |
| R67F-Y0.75KW | 113.94 | 0.75KW | 41kg | 7920N |
| R67F-Y0.75KW | 105.83 | 0.75KW | 41kg | 8320N |
| R67F-Y0.75KW | 95.91 | 0.75KW | 41kg | 8760N |
| R67F-Y0.75KW | 86.11 | 0.75KW | 41kg | 9140N |
| R67F-Y0.75KW | 74.17 | 0.75KW | 41kg | 9520N |
| R67F-Y0.75KW | 69.75 | 0.75KW | 41kg | 9640N |
| R67F-Y0.75KW | 61.26 | 0.75KW | 41kg | 9560N |
| R67F-Y0.75KW | 56.89 | 0.75KW | 41kg | 9960N |
| R67F-Y0.75KW | 51.56 | 0.75KW | 41kg | 10100N |
| R67F-Y0.75KW | 46.29 | 0.75KW | 41kg | 10200N |
R67F減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y1.1KW | 86.11 | 1.1KW | 45kg | 7090N |
| R67F-Y1.1KW | 74.17 | 1.1KW | 45kg | 8120N |
| R67F-Y1.1KW | 69.75 | 1.1KW | 45kg | 8440N |
| R67F-Y1.1KW | 61.26 | 1.1KW | 45kg | 8960N |
| R67F-Y1.1KW | 56.89 | 1.1KW | 45kg | 9200N |
| R67F-Y1.1KW | 51.56 | 1.1KW | 45kg | 9450N |
| R67F-Y1.1KW | 46.29 | 1.1KW | 45kg | 9670N |
| R67F-Y1.1KW | 39.88 | 1.1KW | 45kg | 9910N |
| R67F-Y1.1KW | 37.5 | 1.1KW | 45kg | 9980N |
| R67F-Y1.1KW | 32.27 | 1.1KW | 45kg | 10100N |
| R67F-Y1.1KW | 28.83 | 1.1KW | 45kg | 10200N |
| R67F-Y1.1KW | 28.13 | 1.1KW | 45kg | 10200N |
| R67F-Y1.1KW | 26.72 | 1.1KW | 45kg | 10100N |
| R67F-Y1.1KW | 23.44 | 1.1KW | 45kg | 9690N |
| R67F-Y1.1KW | 19.89 | 1.1KW | 45kg | 9230N |
R67F減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y1.5KW | 61.26 | 1.5KW | 48kg | 7390N |
| R67F-Y1.5KW | 56.89 | 1.5KW | 48kg | 7900N |
| R67F-Y1.5KW | 51.56 | 1.5KW | 48kg | 8440N |
| R67F-Y1.5KW | 46.29 | 1.5KW | 48kg | 8880N |
| R67F-Y1.5KW | 39.88 | 1.5KW | 48kg | 9340N |
| R67F-Y1.5KW | 37.5 | 1.5KW | 48kg | 9490N |
| R67F-Y1.5KW | 32.27 | 1.5KW | 48kg | 9770N |
| R67F-Y1.5KW | 28.83 | 1.5KW | 48kg | 9930N |
| R67F-Y1.5KW | 28.13 | 1.5KW | 48kg | 9950N |
| R67F-Y1.5KW | 26.72 | 1.5KW | 48kg | 9810N |
| R67F-Y1.5KW | 23.44 | 1.5KW | 48kg | 9460N |
| R67F-Y1.5KW | 19.89 | 1.5KW | 48kg | 9030N |
| R67F-Y1.5KW | 17.95 | 1.5KW | 48kg | 8770N |
R67F減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y2.2KW | 39.88 | 2.2KW | 57kg | 7700N |
| R67F-Y2.2KW | 37.50 | 2.2KW | 57kg | 8080N |
| R67F-Y2.2KW | 32.27 | 2.2KW | 57kg | 8790N |
| R67F-Y2.2KW | 28.83 | 2.2KW | 57kg | 9170N |
| R67F-Y2.2KW | 23.00 | 2.2KW | 57kg | 9110N |
| R67F-Y2.2KW | 19.89 | 2.2KW | 57kg | 8740N |
| R67F-Y2.2KW | 17.95 | 2.2KW | 57kg | 8510N |
| R67F-Y2.2KW | 15.79 | 2.2KW | 57kg | 8220N |
| R67F-Y2.2KW | 14.91 | 2.2KW | 57kg | 8090N |
| R67F-Y2.2KW | 12.70 | 2.2KW | 57kg | 7740N |
| R67F-Y2.2KW | 11.54 | 2.2KW | 57kg | 7530N |
| R67F-Y2.2KW | 10.00 | 2.2KW | 57kg | 7230N |
| R67F-Y2.2KW | 8.70 | 2.2KW | 57kg | 6940N |
| R67F-Y2.2KW | 7.79 | 2.2KW | 57kg | 6730N |
R67F減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y3KW | 19.89 | 3KW | 60kg | 8350N |
| R67F-Y3KW | 17.95 | 3KW | 60kg | 8150N |
| R67F-Y3KW | 15.79 | 3KW | 60kg | 7900N |
| R67F-Y3KW | 14.91 | 3KW | 60kg | 7790N |
| R67F-Y3KW | 23.44 | 3KW | 60kg | 8660N |
| R67F-Y3KW | 12.70 | 3KW | 60kg | 7470N |
| R67F-Y3KW | 11.54 | 3KW | 60kg | 7290N |
| R67F-Y3KW | 10.00 | 3KW | 60kg | 7010N |
R67F減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y4KW | 19.89 | 4KW | 71kg | 7920N |
| R67F-Y4KW | 17.95 | 4KW | 71kg | 7760N |
| R67F-Y4KW | 15.79 | 4KW | 71kg | 7560N |
| R67F-Y4KW | 14.91 | 4KW | 71kg | 7460N |
| R67F-Y4KW | 12.70 | 4KW | 71kg | 7200N |
| R67F-Y4KW | 11.54 | 4KW | 71kg | 7040N |
| R67F-Y4KW | 10.00 | 4KW | 71kg | 6790N |
| R67F-Y4KW | 8.70 | 4KW | 71kg | 6560N |
| R67F-Y4KW | 7.79 | 4KW | 71kg | 6390N |
| R67F-Y4KW | 7.36 | 4KW | 71kg | 6300N |
| R67F-Y4KW | 6.27 | 4KW | 71kg | 6030N |
| R67F-Y4KW | 5.70 | 4KW | 71kg | 5870N |
| R67F-Y4KW | 4.93 | 4KW | 71kg | 5640N |
| R67F-Y4KW | 4.29 | 4KW | 71kg | 5420N |
R67F減速機配5.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y5.5KW | 15.79 | 5.5KW | 75kg | 6700N |
| R67F-Y5.5KW | 14.91 | 5.5KW | 75kg | 6990N |
| R67F-Y5.5KW | 12.70 | 5.5KW | 75kg | 6790N |
| R67F-Y5.5KW | 11.54 | 5.5KW | 75kg | 6670N |
| R67F-Y5.5KW | 10.00 | 5.5KW | 75kg | 6480N |
| R67F-Y5.5KW | 8.70 | 5.5KW | 75kg | 6280N |
| R67F-Y5.5KW | 7.79 | 5.5KW | 75kg | 6160N |
| R67F-Y5.5KW | 7.36 | 5.5KW | 75kg | 6070N |
| R67F-Y5.5KW | 6.27 | 5.5KW | 75kg | 5840N |
| R67F-Y5.5KW | 5.70 | 5.5KW | 75kg | 5700N |
| R67F-Y5.5KW | 4.93 | 5.5KW | 75kg | 5490N |
| R67F-Y5.5KW | 4.29 | 5.5KW | 75kg | 5290N |
R67F減速機配7.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| R67F-Y7.5KW | 12.7 | 7.5KW | 98kg | 4420N |
| R67F-Y7.5KW | 11.54 | 7.5KW | 98kg | 5020N |
| R67F-Y7.5KW | 10.00 | 7.5KW | 98kg | 5750N |
| R67F-Y7.5KW | 8.70 | 7.5KW | 98kg | 5900N |
| R67F-Y7.5KW | 7.79 | 7.5KW | 98kg | 5610N |
| R67F-Y7.5KW | 7.36 | 7.5KW | 98kg | 5760N |
| R67F-Y7.5KW | 6.27 | 7.5KW | 98kg | 5560N |
| R67F-Y7.5KW | 5.70 | 7.5KW | 98kg | 5450N |
| R67F-Y7.5KW | 4.93 | 7.5KW | 98kg | 5270N |
| R67F-Y7.5KW | 4.29 | 7.5KW | 98kg | 5100N |
| R67F-Y7.5KW | 7.97 | 7.5KW | 98kg | 1130N |
| R67F-Y7.5KW | 7.53 | 7.5KW | 98kg | 1420N |
| R67F-Y7.5KW | 6.41 | 7.5KW | 98kg | 2130N |
R68減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R58減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
